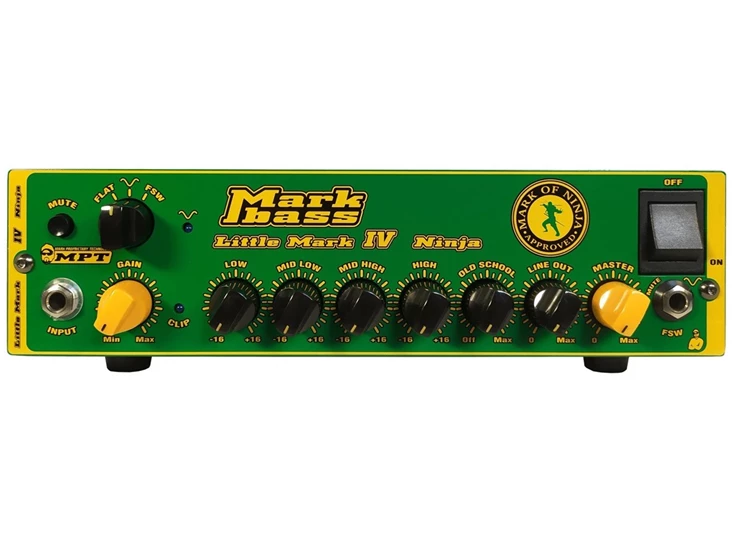

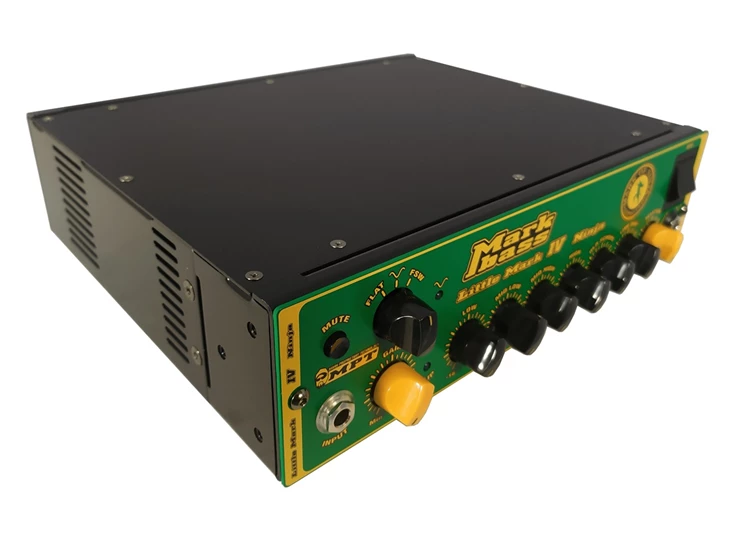

LITTLE MARK IV NINJA

The new release is upgraded with the new features of the Little Mark IV like: the updated 4 band EQ, the Old School filter, the 3-way rotary switch, the new bi-band limiter and powered by our astounding 1000W MPT power amp. It gives a massive amount of power, exceptionally clear and dynamic, and performs flawlessly thanks to the cutting-edge Mark Proprietary Technology!

Features:

• INPUTS INPUT impedance:

  1 Mohm, max. voltage: 9 Vpp RETURN impedance: 22 Kohm, max. voltage: 10 Vpp

• CONTROLS GAIN

  –46 dB to +23 dB range LINE OUT level control on front panel PRE/POST EQ (for line out) switch on rear panel GROUND LIFT switch on rear panel MUTE SWITCH MASTER VOLUME

• EQUALIZATION LOW:

  center frequency 68 Hz; level: ±16 dB MID LOW: center frequency 360 Hz; level: ±16 dB MID HIGH: center frequency 800 Hz; level: ±16 dB HIGH: center frequency 10 kHz; level: ±16 dB OLD SCHOOL: max cut range: 250 Hz – 20 kHz 3 WAY ROTARY SWITCH: flat/scooped-mid/FSW

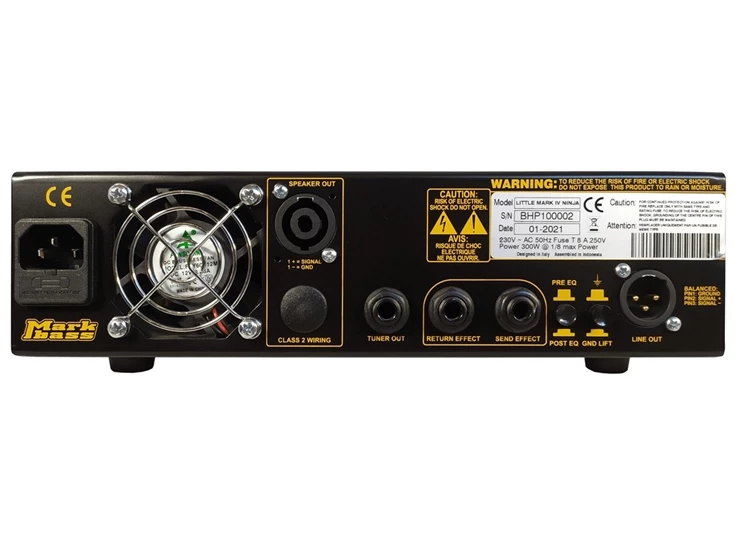

• OUTPUTS SEND EFFECTS:

  unbalanced, max. voltage 20 Vpp TUNER OUT: unbalanced, max. voltage 2 Vpp LINE OUT balanced XLR, max. voltage 20 Vpp SPEAKER OUT: speakon

• DIMENSIONS AND WEIGHT HEIGHT:

  2 rack units (3.27 in. / 83 mm) WIDTH: 10.87 in. / 27.6 cm (19 in. / 48.3 cm with optional rack ears) DEPTH: 9.84 in. / 25 cm WEIGHT: 6.17 lbs / 2.8 kg

• OTHERS BI-BAND LIMITER FOOTSWITCH (OPTIONAL):

  FLAT/SCOOPED-MID OUTPUT POWER: 1000W RMS @ 4 ohm, 600W RMS @ 8 ohm POWER REQUIREMENT: 100V; 120V; 230V; 240V 50/60Hz (Voltage is factory preset according to region of sale)
