CIOKS DC7 Voeding

239,00
Op voorraad
Omschrijving

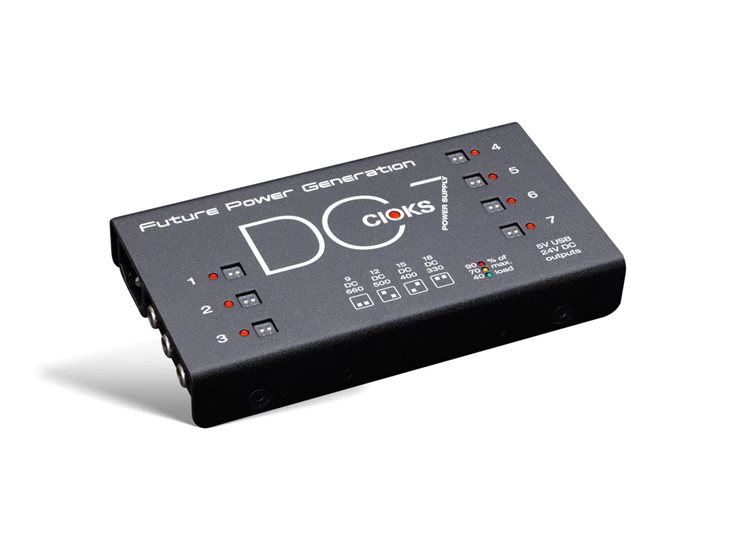

CIOKS DC7

Power Supply

The groundbreaking DC7 has a one-inch (25,4mm) profile and weighs 1.1 pound (500 grams) thanks to the pure 2-stage switch-mode technology inside. The profile may be low but the power ratings are certainly not – the DC7 puts out a maximum of 48W and allows the user to connect multiple high-current effects such as devices from Effectrode, Line 6 and Eventide without noise of any kind.

Features:

  • Groundbreaking 1-inch profile (25,4mm)
  • 2-stage switch-mode power supply topology
  • Ultra-low noise achieved by multistage filtering
  • 7 isolated DC-outlets, 6W each
  • 660mA at 9V DC on each outlet
  • 4 selectable voltages on each outlet
  • 5V USB outlet with max. 1A
  • 24V DC auxiliary outlet with max. 2A
  • Individual power limit LED on all outputs
  • Built-in true power meter showing the total load
  • Global overload status LED
  • Universal mains input voltage 90 to 265V AC
  • Total maximum output power 48W
  • Mounting hardware for Pedaltrain and Templeaudio boards included
  • Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards*
  • 12 Flex cables included
  • Expandable with CIOKS 4*, CIOKS 8* and Crux*
  • Weighs 1.1 lbs. (500 grams)
  • Designed in Denmark, assembled in Poland
Specificaties
Bestelnummer:
CKDC7
Merk:
Garantie: 3 jaar
